Acmer · Combination machine
Acmer P3 10W Diode + 2W IR
Enclosed CoreXY laser with 10 W diode and 2 W infrared, camera and fume extraction. An affordable entry into diode plus IR, but weak at cutting.
Ideal for: Beginners who want to engrave wood and leather and also mark metal without buying two devices.
Price in the manufacturer's shop€949, Basic packageAs of 26 Oct 2026, can change dailyThere is no manufacturer's shop price for your region, the EU price is shown.
Pros and cons
Pros
- Diode and infrared in one module, mark metal without changing modules
- enclosed housing with camera, class 1
- optional conveyor belt for long workpieces
Cons
- only 10 W diode power, much weaker at cutting than the 48 W version
- Exhaust without filter, hose to the outside required
- according to a test, laser light escapes through the ventilation slots at some angles
Specs
| Price range | €500 to €1,000 |
|---|---|
| Price in the manufacturer's shop | €949, Basic package (As of 26 Oct 2026) |
| Laser type | Combination machine |
| Laser source | Diode 10 W (455 ± 5 nm) and infrared 2 W (1064 ± 1 nm) in a dual module |
| Power (optical, main source) | 10 W |
| Work area | 400 × 390 mm |
| Dimensions | 585 × 660 × 270 mm |
| Weight | 19 kg |
| Construction type | Gantry |
| Enclosure | enclosed |
| Laser class | Class 1 |
| Speed (max.) | 800 mm/s (48,000 mm/min) |
| Cutting according to the manufacturer | up to 15 mm wood, 12 mm acrylic, 6 mm MDF (retailer information, passes not stated); IR for marking only |
| Air Assist | yes (30 l/min according to test) |
| Camera | yes, integrated 5 MP camera with 400 x 400 mm field of view |
| Fume extraction | Extraction fan with exhaust hose, no filter |

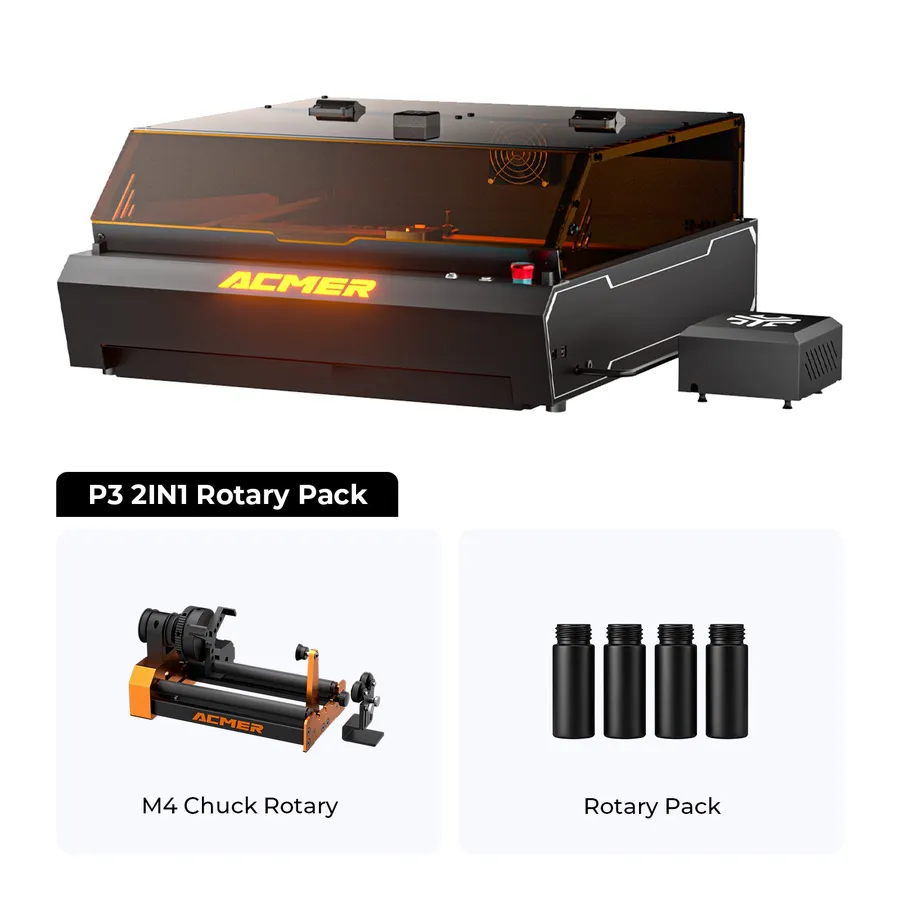

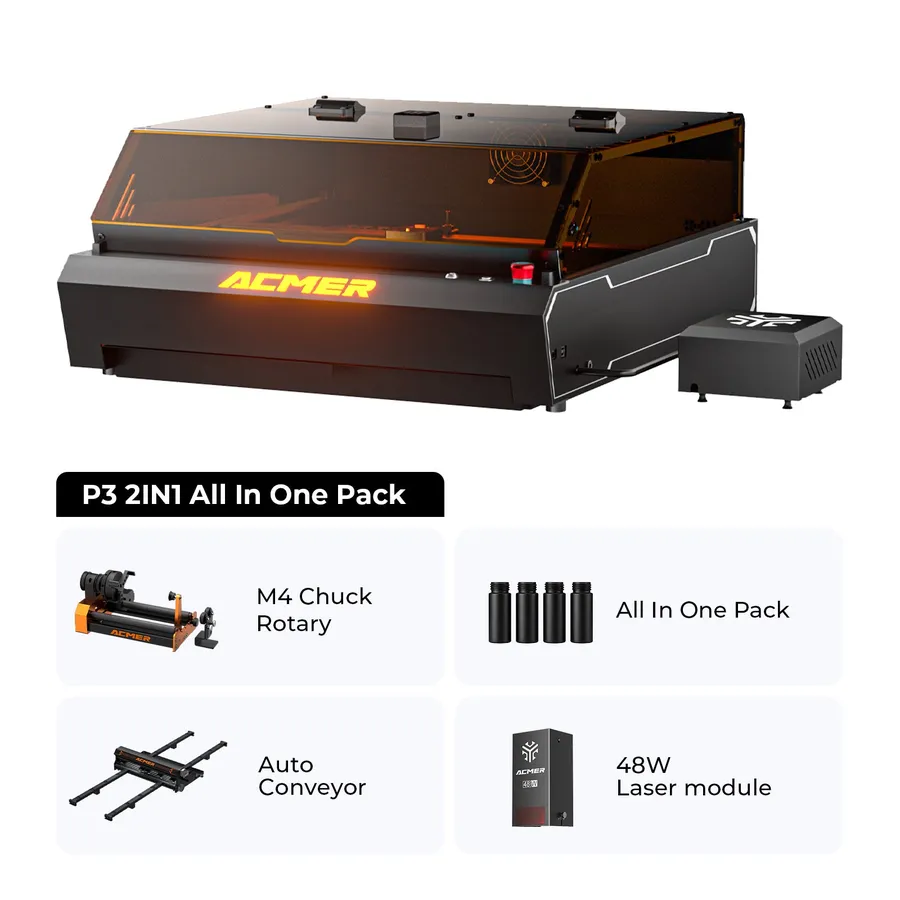

| Rotary attachment | optional (M4 4-in-1 rotary chuck), conveyor optional (up to 4,000 mm length) |
| Software | Acmer Studio, Acmer App, LightBurn, LaserGRBL |
| Connectivity | USB, Wi-Fi (app), microSD card |
| Materials (according to the manufacturer) | Wood, Plywood, MDF, Bamboo, Paper, Leather, Acrylic (opaque), Plastic, Ceramic, Stone, Anodised metal, Painted/coated metal, Stainless steel (marking), Aluminium (marking), Brass/copper (marking), Gold/silver (marking) |
Source: Manufacturer or retailer specifications, As of 10/2026. Cutting figures are manufacturer values under ideal conditions.
