WeCreat · Diode laser

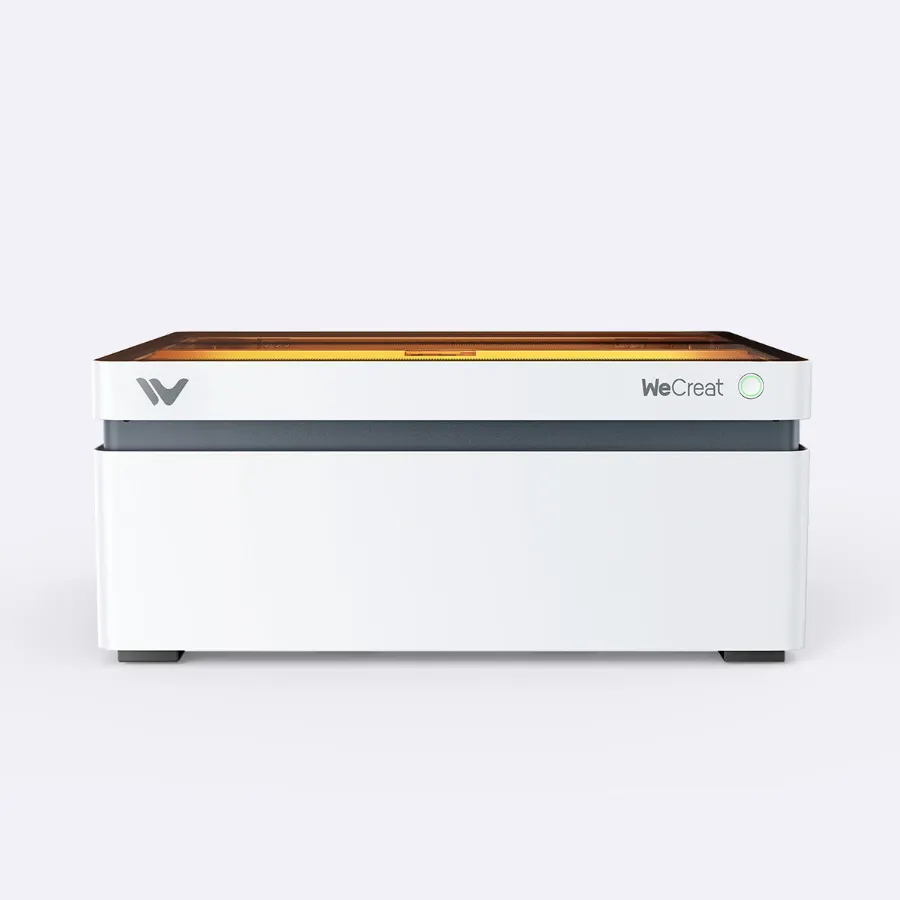

WeCreat Vision 20W
Enclosed 20 W diode laser with camera, auto lift and Air Assist. Convenient, but with a medium-sized work area.
Ideal for: Beginners and small shops who want an enclosed diode laser with camera for tumblers and wooden items.
Price in the manufacturer's shop€1,399, Basic PackAs of 26 Oct 2026, can change dailyThere is no manufacturer's shop price for your region, the EU price is shown.
Pros and cons
Pros
- automatically height-adjustable floor up to 140 mm, no spacer blocks needed
- Camera, air assist and enclosure as standard
- optional conveyor for workpieces up to 3,480 mm length
Cons
- Work area smaller than on many open diode lasers
- Fume extraction costs extra
- Manufacturer's page with contradictory information on dimensions and cutting speed
Specs
| Price range | €1,000 to €1,500 |
|---|---|
| Price in the manufacturer's shop | €1,399, Basic Pack (As of 26 Oct 2026) |
| Laser type | Diode laser |
| Laser source | Diode 20 W optical; optional 2 W infrared 1064 nm (interchangeable) |
| Power (optical, main source) | 20 W |

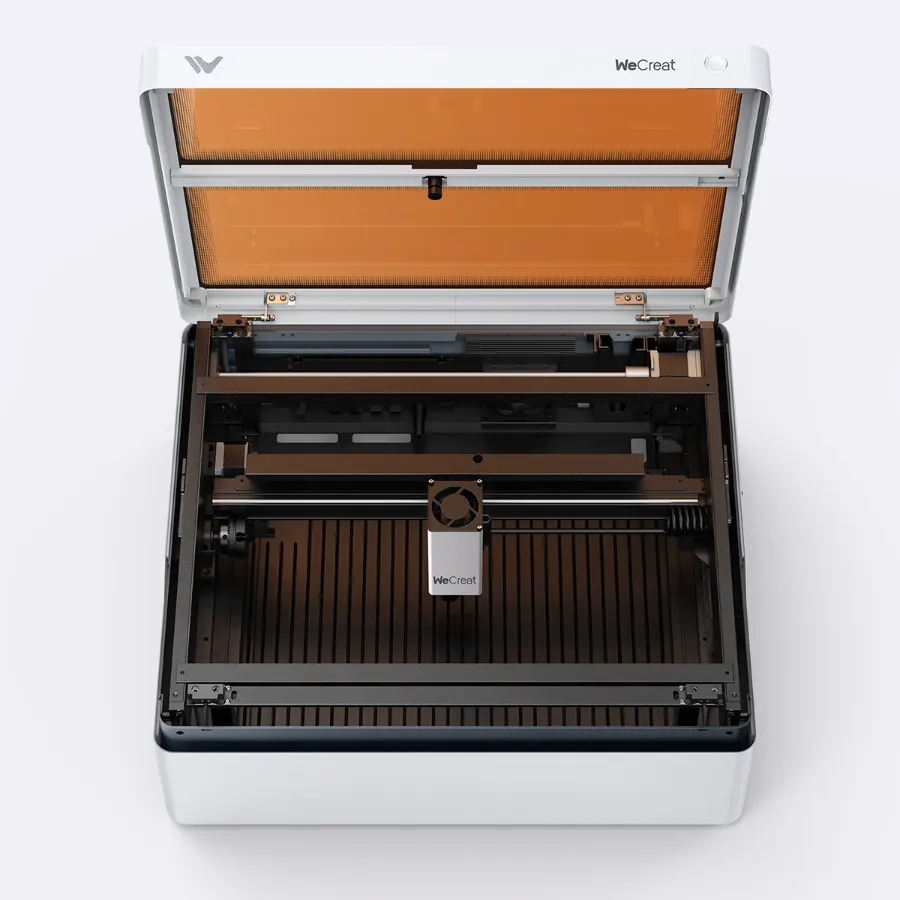

| Work area | 420 × 290 mm |
| Dimensions | 589 × 531 × 253 mm |
| Weight | 25 kg |
| Construction type | Gantry |
| Enclosure | enclosed |
| Laser class | Class 1 |
| Speed (max.) | 600 mm/s |
| Cutting according to the manufacturer | up to 10 mm linden wood, 11 mm black acrylic, 10 mm walnut in one pass |
| Air Assist | integrated |
| Camera | yes, HD camera with autofocus |
| Fume extraction | Exhaust port, fume extraction optional (Fume Extractor) |
| Rotary attachment | optional (Rotary Pro) |
| Software | WeCreat MakeIt, LightBurn |
| Connectivity | USB, Wi-Fi |
| Materials (according to the manufacturer) | Wood, MDF, Paper, Cardboard, Leather, Felt, Jeans, Acrylic (dark), Bamboo, Fabric, Glass (dark), Ceramic, Marble, Brick, Stainless steel (marking), Coated metal |
Source: Manufacturer or retailer specifications, As of 10/2026. Cutting figures are manufacturer values under ideal conditions.
Facts, not a buying recommendation. This page summarises manufacturer specifications and our assessment. If we recommend a device, it is explicitly marked “Our recommendation”. Figures marked ◇ do not come from the manufacturer; the source is linked. How we work
